How Bidirectional Simulators are Unlocking Grid Services from EVs and Batteries?
For decades, the electrical grid operated on a simple, one-way street: power flowed from large central plants to homes and businesses. Our relationship with electricity was passive. We consumed it. But today, a quiet revolution is underway, turning this one-way street into a dynamic, two-way network. At the heart of this transformation are two key technologies: electric vehicles (EVs) and battery energy storage systems (BESS). And the critical tool ensuring this revolution happens safely and reliably? The bidirectional grid simulator.
From Energy Consumers to Grid Partners: The Rise of Distributed Resources
Electric vehicles are no longer just cars; they are essentially massive batteries on wheels. Similarly, stationary storage systems are becoming commonplace in homes, businesses, and at the utility scale. What makes these assets so powerful is their bidirectional capability—the ability not just to draw power from the grid, but to push it back in when needed.
This capability unlocks a world of possibilities, moving these assets from simple energy consumers to active grid services providers. But you can’t just plug a new device into the world’s most complex machine and hope for the best. This is where bidirectional grid simulators come in.

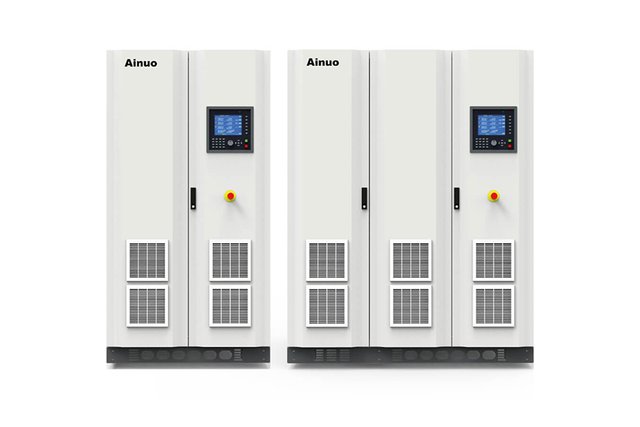

What is a Bidirectional Grid Simulator, Anyway?
Think of a bidirectional grid simulator as the ultimate training ground for grid-connected technology. Unlike a simple power source, it’s a sophisticated piece of test equipment that can do two crucial things:
- Emulate Grid Conditions: It can act like the real grid, replicating everything from perfect 60 Hz power to abnormal conditions like voltage sags, swells, frequency fluctuations, and harmonic distortions.
- Absorb Power Bidirectionally: It can act like a perfectly behaved, infinitely flexible grid, absorbing the power that an EV charger or battery inverter sends back to it.
Unlocking Key Grid Services: The Simulator in Action
So, what specific grid services are being unlocked? Let’s look at the most critical ones.1. Vehicle-to-Grid (V2G) and Frequency Regulation
The grid must maintain a perfect balance between supply and demand, reflected in a stable frequency (60 Hz in North America). When demand spikes, frequency drops. Traditionally, gas "peaker" plants ramp up to correct this. Now, a fleet of EVs plugged into V2G chargers can provide the same service, and faster. A bidirectional simulator is used to test the charger and vehicle’s response to simulated frequency dips, ensuring they can inject power accurately and reliably within milliseconds.2. Peak Shaving and Demand Response
Utilities face their highest costs during periods of peak demand (e.g., hot summer afternoons). Instead of firing up expensive and polluting peaker plants, they can pay consumers to reduce their draw from the grid. A building with a battery, or an EV fleet at a depot, can use its stored energy to power itself during these peaks. A simulator tests the entire system's ability to seamlessly island from the grid and then reconnect without causing a disturbance.3. Virtual Power Plants (VPPs)
This is the ultimate expression of distributed resources. A VPP is a cloud-based network that aggregates thousands of individual EVs, home batteries, and solar systems to act like a single, dispatchable power plant. Before a utility contracts a VPP, they need absolute confidence it will perform as promised. Bidirectional simulators are used to stress-test the communication and control systems of the aggregated assets, validating that they can charge or discharge in unison to meet a grid operator’s command.4. Voltage Support and Reactive Power Control
Voltage levels can vary locally on the grid, especially with high concentrations of solar power. Inverters in EVs and batteries can be programmed to inject or absorb reactive power (VARs) to help stabilize local voltage. This is a complex function that must be tested against a wide range of grid voltages. The simulator creates these scenarios to ensure the device supports the grid without causing instability.
Why Simulation is Non-Negotiable
The question isn't "why use a simulator?" but "what’s the alternative?" The alternative is testing on the live grid, which is fraught with risk:
- Safety: A malfunctioning inverter could cause a local blackout or damage grid equipment.
- Cost: Failures are incredibly expensive and dangerous in the real world.
- Compliance: Grid interconnection standards like IEEE 1547 and UL 1741-SA mandate rigorous testing that can only be performed reliably with a bidirectional power source.
