How to Choose the Best 3K Carbon Fiber Tubes for Drones & Robotics
- Why 3K Carbon Fiber Tubes Are the “Skeleton” of Choice for Drones & Robots
30 %–50 % lighter than aluminum, over 70 % lighter than steel
4–5× the specific stiffness of aluminum alloy, reducing end‑point vibration
3K twill weave provides a 3D texture for both premium appearance and anti‑slip grip
Corrosion‑resistant, low creep—service life doubled in outdoor/high‑humidity environments - Typical Load‑Bearing Areas for 3K Carbon Fiber Tubes in Drones & Robots
Component Load Type Recommended Specs Key Performance
Drone Arm Bending + Torsion Ø15–25 mm, t = 1.0–2.0 mm High torsional stiffness; resonance > 100 Hz
Robot Linkage Tension/Compression + Bending Ø8–20 mm, t = 1.5–3.0 mm Straightness ≤ 0.1 mm/m
End Effector Cantilever Bending Ø6–12 mm, t = 0.8–1.5 mm Weight < 20 g
Landing Gear / Support Leg Impact + Fatigue Ø20–30 mm, t = 2.0–3.5 mm Energy absorption; impact resistance
4‑Step Selection Process for 3K Carbon Fiber Tubes (Complete in 30 Seconds)
Load Calculation
Bending Moment: M = F × L
Torsion: T = Fₜ × r
Use our online “Load Calculator” to get the minimum wall thickness tₘᵢₙ.
Diameter–Wall‑Thickness Pairing
Long Cantilevers (L > 400 mm): Ø ≥ 20 mm & t ≥ 1.5 mm for higher critical speed
Short Links (L < 200 mm): Ø 10–15 mm & t = 1.0 mm for optimal weight savings
Fiber/Resin System
Standard: T300 3K + epoxy, cured at 120 °C for best cost‑performance
Aerospace: T700 3K + toughened epoxy, +30 % strength, enhanced impact resistance
Low‑Temp: epoxy cured at 80 °C, ideal for heat‑sensitive electronics
Surface Finish & Fittings
Cosmetic Parts: 3K twill glossy finish + laser‑etched logo
Functional Parts: 3K twill matte finish (anti‑glare, anti‑fingerprint)
In‑mold Aluminum Ferrules: hole tolerance ± 0.02 mm, direct motor/servo mounting—no post‑machining

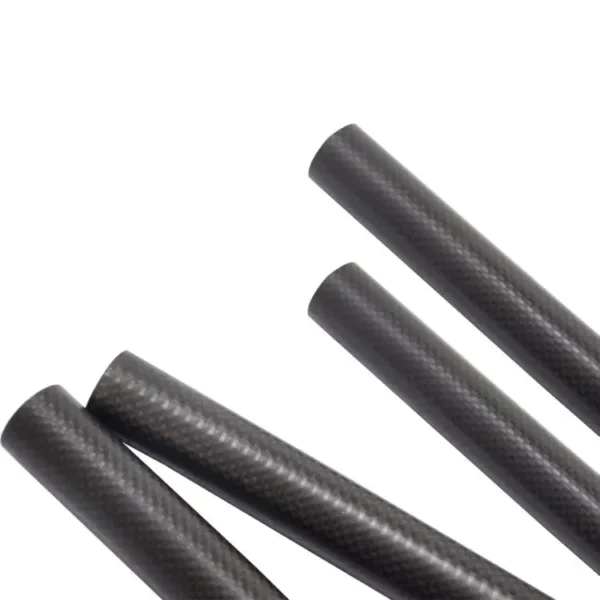

3K Carbon Fiber Tubes
3K Carbon Fiber TubesReal‑World Comparison: 3K Carbon Fiber Tubes vs. 6061‑T6 Aluminum Rods
Parameter Ø20×1.5 mm 3K Tube Ø20×2.0 mm Aluminum Tube Improvement
Mass (per 1 m) 110 g 220 g – 50 %
Tensile Stiffness 38 kN/mm 20 kN/mm + 90 %
Critical Speed* 4 200 rpm 2 800 rpm + 50 %
Salt Spray (500 h) No corrosion Surface oxidation —
*Cantilever length 500 mm, tip mass 0.5 kgQuick‑Reference Selection Table
Application Recommended Spec Ply Schedule Tolerance Grade Notes
Consumer Aerial Quadcopters Ø15×1.2 mm [±45°/0°/±45°] P1 – 35 % weight
Agricultural Hexacopters Ø25×2.0 mm [0°₂/±45°/90°] P0 Chemical‑resistant
Collaborative Robot Links Ø12×1.5 mm [0°₃/90°] P0 Straightness ≤ 0.05 mm/m
Humanoid Robotic Arms Ø8×1.0 mm [0°/±45°] P1 Flexible jointsDelivery & Customization
Stock Ranges: Ø 4–30 mm, t 0.5–5 mm, lengths 100–3000 mm; 48 h dispatch
Custom Sections: Octagonal, rectangular, Ω‑shaped, etc.
One‑Click Downloads: STEP models + dynamic balancing report for direct installationIn One Sentence
Choosing the right 3K Carbon Fiber Tubes equips your drones and robots with a “skeleton that’s as light as a feather and as strong as steel.”
