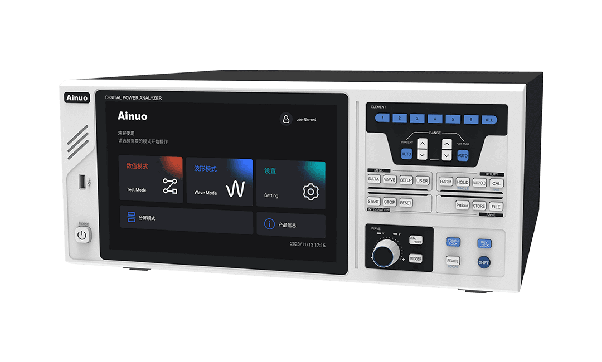

Multi-channel Power Analyzer Applications in Electrical Measurements

In the world of electrical engineering, power is the ultimate metric. It's the final measure of efficiency, performance, and cost. But as systems become more complex—think electric vehicles, renewable energy inverters, and advanced motor drives—a simple voltmeter and ammeter are no longer enough. Enter the multi-channel power analyzer: the unsung hero of modern electrical validation.

This isn't your average power meter. It's a sophisticated instrument capable of simultaneously measuring voltage and current on multiple channels, providing a synchronized, comprehensive view of energy flow within an entire system. But what exactly can you do with one? Let's explore the critical applications where multi-channel power analyzers are indispensable.

Beyond Single-Phase: Capturing the Whole Picture

The primary advantage of a multi-channel power analyzer is its ability to measure multiple power sources or loads at the same time, with precise time alignment. This allows engineers to see interactions that would be invisible with separate, unsynchronized instruments.

Key Applications Driving Innovation

1. Electric Vehicle (EV) & Powertrain Efficiency Mapping

The drivetrain of an EV is a complex ecosystem of energy conversion. A multi-channel power analyzer is crucial for mapping efficiency from the battery to the wheels.

• Channel 1 & 2: DC input from the battery pack.
• Channel 3 & 4: AC output from the inverter to the motor.
• Channel 5 & 6: Mechanical power output from the motor (using torque and speed inputs).
  By measuring all these points simultaneously, engineers can calculate the individual efficiencies of the inverter and the motor, and most importantly, the total system efficiency. This data is vital for maximizing driving range and optimizing thermal management.

2. Three-Phase System Analysis

From industrial motors to data center power distribution, three-phase power is the backbone of modern industry. A multi-channel analyzer (with a minimum of 3 voltage and 3 current inputs) is designed for this.

• Load Analysis: Precisely measure true power (W), apparent power (VA), reactive power (VAR), and power factor for each phase and the total system.
• Harmonic Analysis: Identify current and voltage harmonics that can cause overheating, equipment malfunctions, and energy losses. This is critical for compliance with standards like IEEE 519.
• Unbalance Detection: Quickly identify phase unbalance, which can lead to inefficiency and damage in three-phase motors.

3. Inverter & Converter Efficiency Testing (e.g., Solar, Wind)

Renewable energy systems live and die by efficiency. A grid-tied solar inverter's job is to convert DC from solar panels into clean AC for the grid. A dual-channel power analyzer can measure:

• Channel 1: DC input power from the PV array.
• Channel 2: AC output power to the grid.
  With synchronized measurements, you get a highly accurate real-time efficiency curve (η = Pout / Pin) as operating conditions change. The same principle applies to DC-DC converters, UPS systems, and variable-frequency drives (VFDs).

4. Input-Output Loss Analysis

This is a universal application. Any time you have a "black box"—a device that takes power in one form and delivers it in another—a multi-channel analyzer can tell you exactly what happens inside.

• Example - Server Power Supply:
• Channel 1: AC input power from the wall outlet.
• Channel 2: DC output power to the server motherboard.
  The difference between the two readings is the total power loss (heat), allowing you to calculate efficiency and identify losses under different load conditions.

5. Standby and Low-Power Mode Compliance

International regulations (like ENERGY STAR or EU ErP Directive) set strict limits on the power consumption of devices in standby or off-mode. Modern power analyzers have the high resolution and accuracy needed to measure these tiny currents and power levels, ensuring products meet legal requirements and avoid costly non-compliance.

6. Motor & Drive Characterization

When testing a motor driven by a VFD, you need to understand both the electrical input to the drive and the mechanical output of the motor.

• Electrical Channels: Measure the power quality and input power to the VFD.
• Mechanical Channel (via Transducer): Measure the motor's torque and rotational speed to calculate mechanical power.
  This combined electrical-mechanical analysis provides a complete picture of motor performance across its entire operating range.

Why a Multi-channel Analyzer is a Game-Changer

You might wonder, "Can't I just use several single-channel meters?" The answer is a resounding no, and here's why:

• Perfect Synchronization: All measurements are taken at the exact same moment in time. This is critical for calculating efficiency in dynamic systems where power levels fluctuate rapidly.
• Simplified Setup and Workflow: One instrument, one set of wiring, and one unified software interface drastically reduce setup time and the potential for error.
• Integrated Data Analysis: View all parameters—voltage, current, power, and harmonics—for all channels on a single display. Perform direct mathematical functions between channels (e.g., Channel 2 Power / Channel 1 Power = Efficiency) in real-time.
• Transient Capture: Capture and analyze complex start-up sequences, load changes, and fault conditions across the entire system simultaneously.

Conclusion: From Component to System-Level Insight

The multi-channel power analyzer has evolved from a niche instrument to a fundamental tool for innovation. It empowers engineers to move beyond isolated component testing and perform true system-level analysis. By providing a synchronized, holistic view of energy flow, it uncovers inefficiencies, validates performance, and ultimately helps build the more reliable and energy-efficient technologies of tomorrow.

Whether you're developing the next-generation EV, optimizing a factory's power consumption, or pushing the limits of renewable energy, the multi-channel power analyzer provides the critical data you need to power progress.
