What Are Standard & High-Speed Optocouplers?

When selecting electronic components, optocouplers—also known as opto-isolators—are essential for achieving electrical isolation. As modern electronic systems demand faster speeds and higher precision, traditional optocouplers are struggling to keep up, paving the way for high-speed optocouplers to take the stage. But what exactly sets them apart? And in which situations should you use one over the other? Let's break it all down.

I. What Is an Optocoupler?

An optocoupler is a component that uses light to transfer signals between two electrically isolated circuits. It typically consists of an LED on the input side that converts electrical signals into light, and a photosensitive device (like a phototransistor or photodiode) on the output side that turns the light back into an electrical signal. This light-based transmission ensures safety and signal integrity by preventing high voltages from passing between circuits.

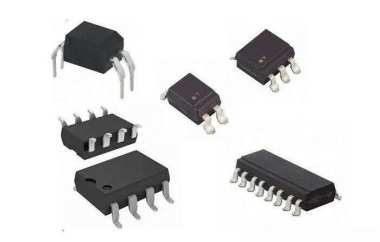

II. What Are Standard optocouplers & High-speed optocouplers?

Standard optocouplers usually use an infrared LED paired with a phototransistor. They rely on the photo-generated current amplification principle, which inherently limits their speed due to carrier transit time. Their response time is typically in the microsecond range.

High-speed optocouplers, on the other hand, use an architecture combining an infrared LED, photodiode, and a transimpedance amplifier. The photodiode enables nanosecond-level response, while the amplifier ensures clean, fast signal conversion.
